CROSSTRAP® is a modern trap for capturing coleopteran insects in flight. It was developed as part of an R&D project (University of Murcia - ECONEX) with the aim of developing traps and attractants for forest insects.
This product is patented as CROSS-VANE TRAP WITH SLIDING TREATMENT FOR INSECT TRAPPING (ES1076374U). It is a protected trademark in Spain (M2873513/7), the European Union (A013219001) and the United Kingdom (UK00913219001), as well as in Australia, China, Iran, Japan and South Korea. It also has OMDF registration number (Spanish Ministry of Agriculture): 153/2013
It is a versatile trap that allows for:
CROSSTRAP® traps are resistant and have been improved over the years.
TRAP MODELS
.png)

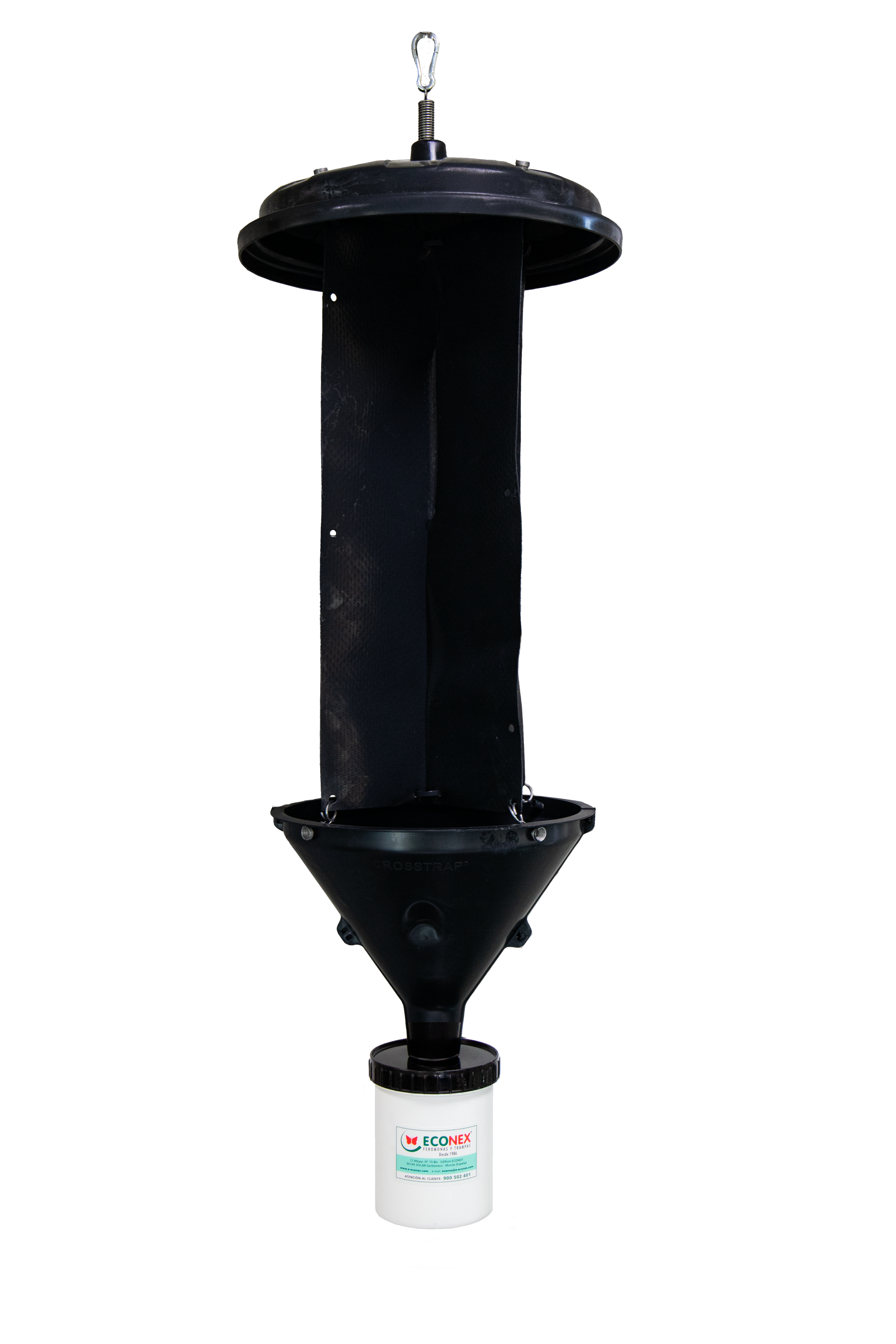

CROSSTRAP® MINI WITH WET COLLECTION CUP (with slider)
Traps for the interception of coleopteran insects during their flight.
Code: UIPFETA226
OMDF registration number (Spanish ministry of agriculture): 153/2013
CROSSTRAP® MINI WITH DRY COLLECTION CUP (with slider)
Traps for the interception of coleopteran insects during their flight.
Code: UIPFETA204
OMDF registration number (Spanish ministry of agriculture): 153/2013
CROSSTRAP® WITH WET COLLECTION CUP (with slider)
Traps for the interception of coleopteran insects during their flight.
Code: UIPFETA227
OMDF registration number (Spanish ministry of agriculture): 153/2013

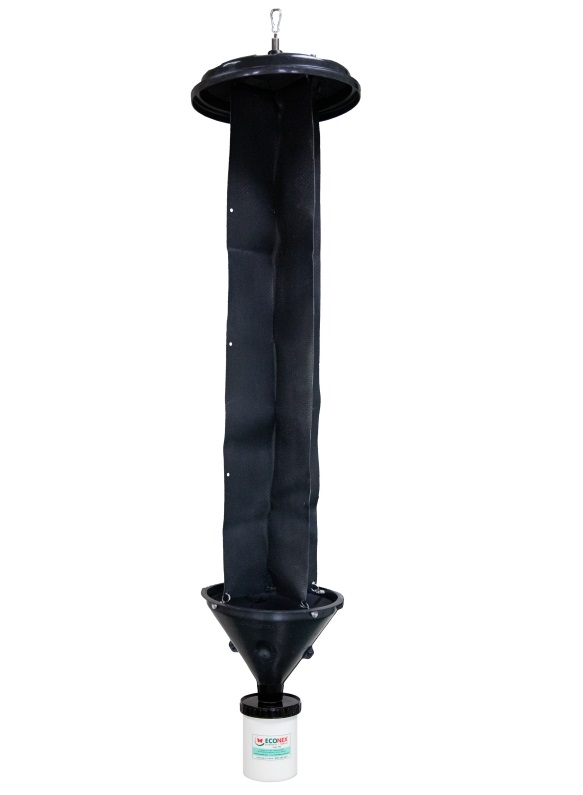

CROSSTRAP® WITH DRY COLLECTION CUP (with slider)
Traps for the interception of coleopteran insects during their flight.
Code: UIPFETA132
OMDF registration number (Spanish ministry of agriculture): 153/2013

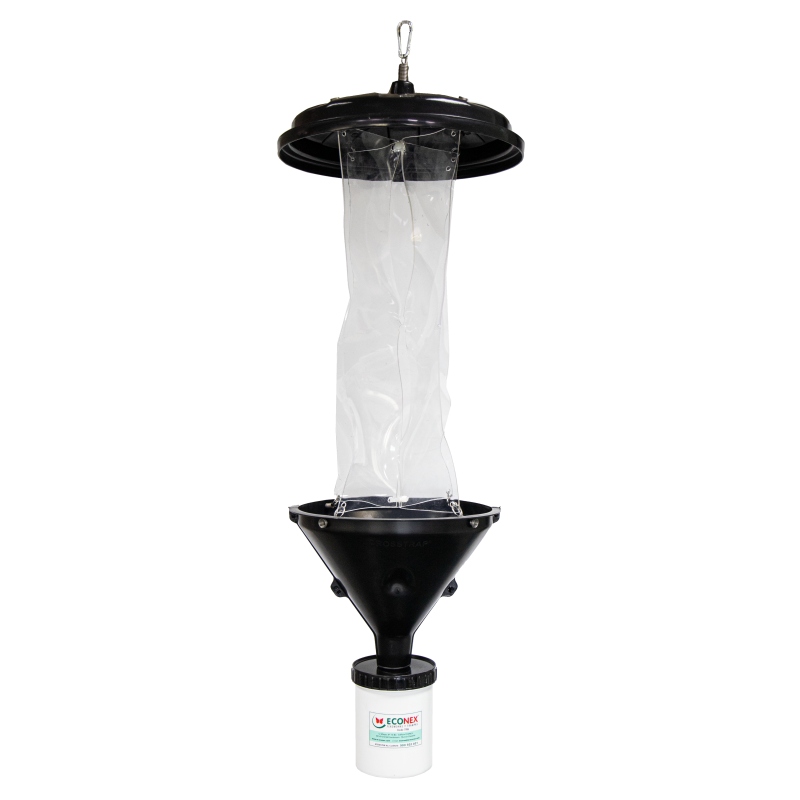

CROSSTRAP® MINI TRANSPARENT WITH WET COLLECTION CUP
Trampa forestal para la investigación de coleópteros.
Code: UIPFETA228
OMDF registration number (Spanish ministry of agriculture): 153/2013
CROSSTRAP® MINI TRANSPARENT WITH DRY COLLECTION CUP
Trampa forestal para la investigación de coleópteros.
Code: UIPFETA223
OMDF registration number (Spanish ministry of agriculture): 153/2013
These traps consist of a polypropylene lid with a central carabiner attached to a stainless-steel spring and two reinforced PVC sheets anchored at the top to the lid by four stainless steel springs that act as shock absorbers against strong winds, helping to prevent damage to the trap. At the bottom, the reinforced PVC sheets are attached by steel springs to a 30 cm diameter polypropylene funnel. At the end of the funnel is the container for retaining the captured insects.
The PVC sheets, funnel and collection cup are treated with a sliding film.

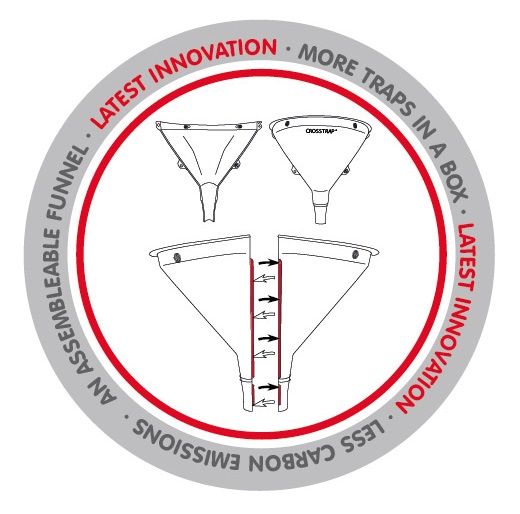

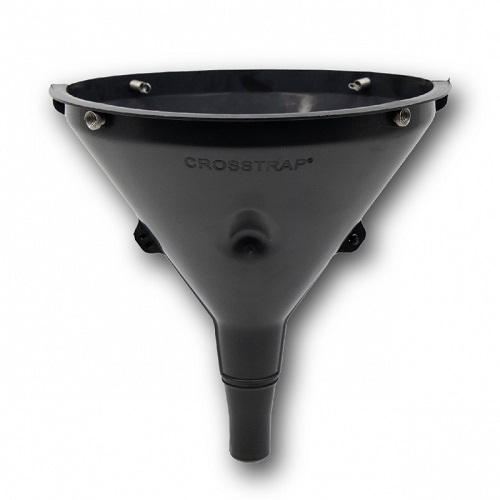

New funnel:
To help reduce environmental impact, a removable funnel has been launched in 2024, following several years of research, which optimises trap transport and reduces carbon emissions.
Types of collectors:
Depending on the purpose of the trap, choose between the CROSSTRAP® DRY COLLECTOR (with slide) or CROSSTRAP® WET COLLECTOR (with slide).
The CROSSTRAP® DRY COLLECTOR (with slide) container has a stainless-steel mesh at the bottom that allows rainwater to drain out. It has an approximate capacity of 1 litre (11 cm diameter x 13.5 cm high). It is used for dry or live capture.
The CROSSTRAP® WET COLLECTOR (with slide) container has an approximate capacity of 1 litre (11 cm diameter x 13.5 cm).
Wet catches allow for accurate identification of the capture. To do this, we recommend filling the collector with 10 ml of propylene glycol diluted to 10 or 20%, or, if necessary, using car antifreeze. This liquid serves both to kill the catch and as a preservative, provided it is not diluted too much by rain, in which case it should be replaced.

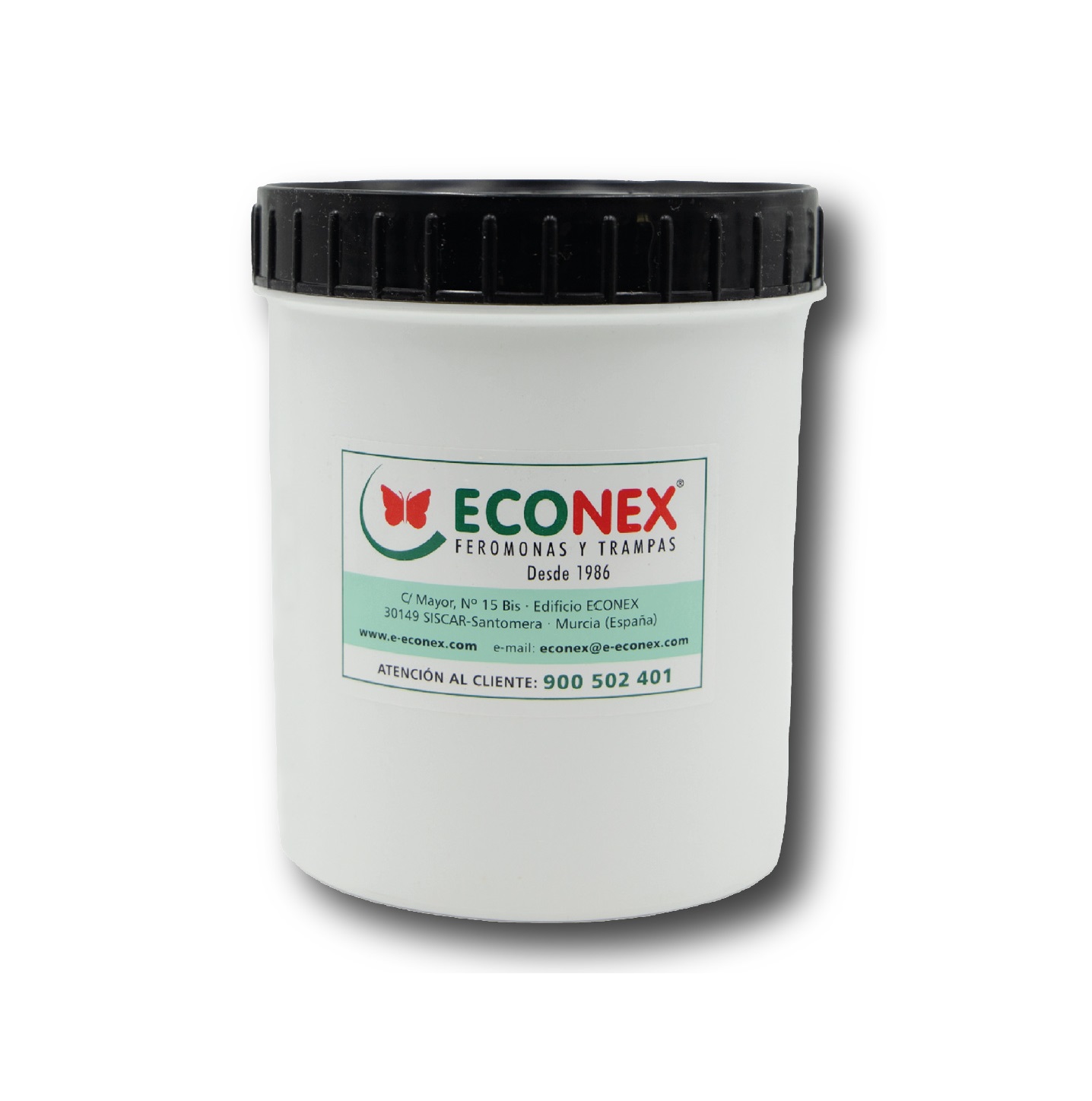

CROSSTRAP® WET COLLECTION CUP (with slider) 1 L
Colector de capturas en húmedo situado en la parte inferior de las trampas CROSSTRAP®.
Code: UIPFETA311
CROSSTRAP® DRY COLLECTION CUP (with slider)
Collection cup for dry use, or live catches, located at the bottom of CROSSTRAP® traps.
Code: UIPFETA157

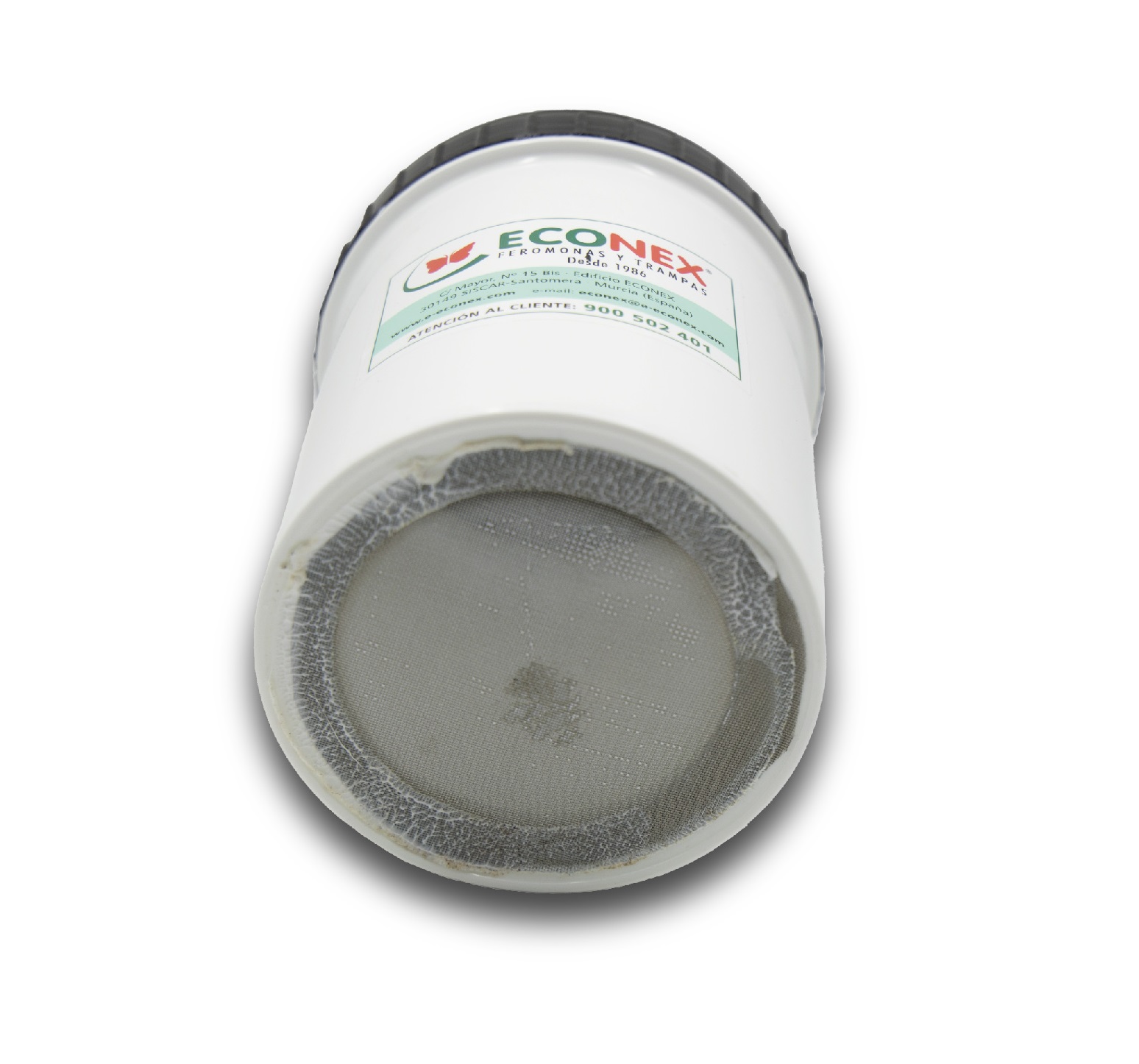

CROSSTRAP® DRY COLLECTION
View from bellow
The use of the CROSSTRAP® together with a wide variety of specific attractants empowers the control of a wide range of species, including the following:

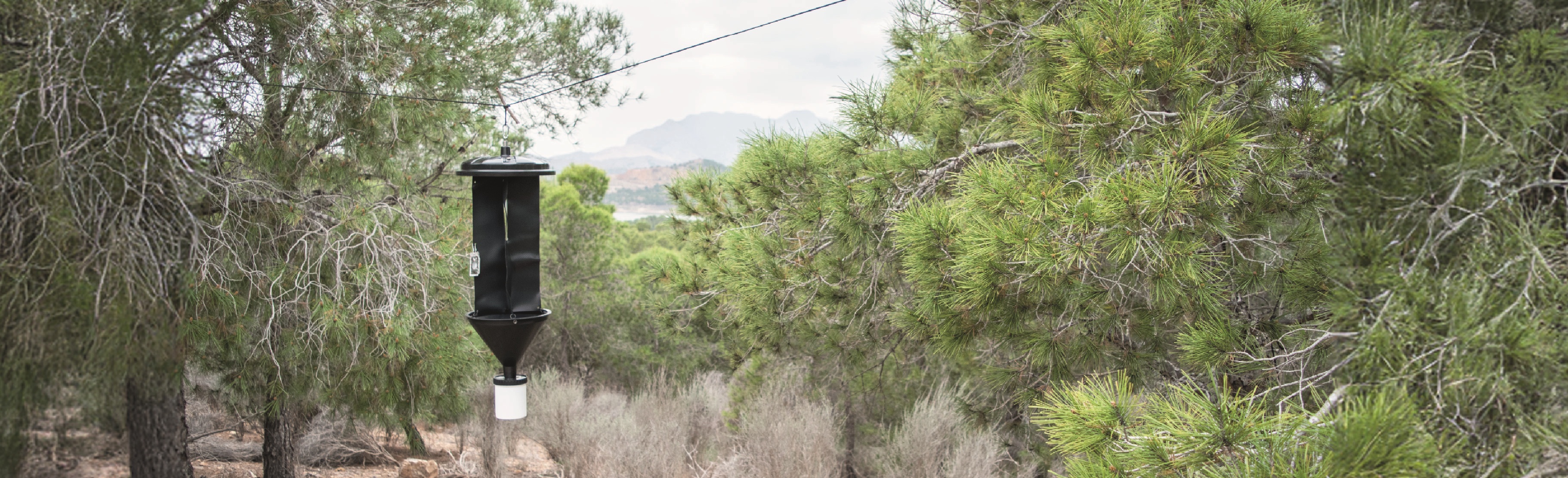

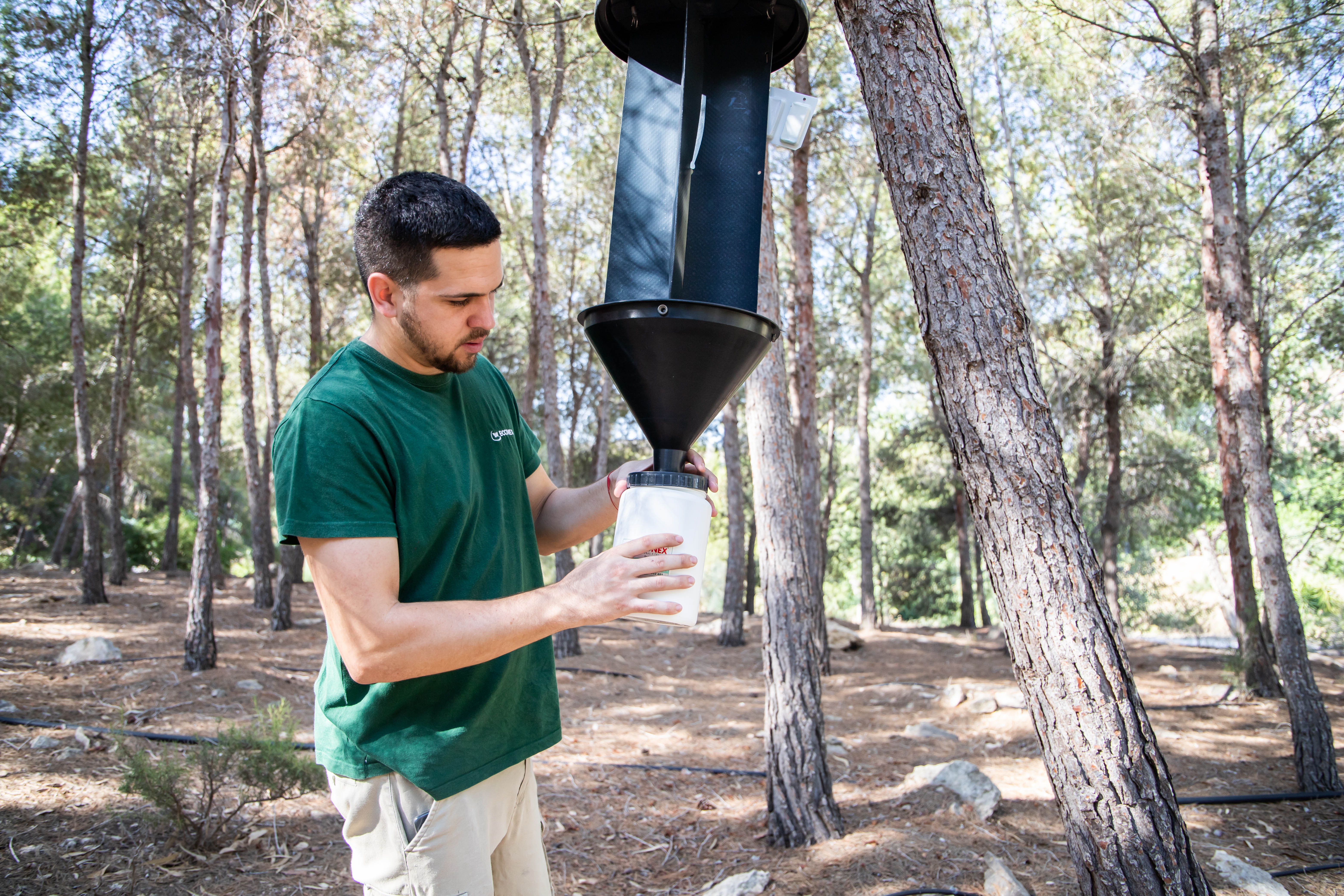

Traps should be hung by using a string, either between two trees or from a branch, always ensuring that they are vertical and do not come into contact with the tree trunk.
The height at which the trap is installed is not important, but it should be hung so that it does not touch the ground or any other object. The metal support ECONEX SUPPORT FOR FOREST TRAPS (Code: UIPFETA147) designed for this purpose can also be used.
It is recommended to install it in places with good visual accessibility for insects, such as forest edges, forest tracks or firebreaks.
The traps are activated by placing the attractants in the holes in the sheet.
The number of traps to be placed will depend on the size of the forest and the target insect. For further information, please consult the technical data sheet for the target insect.
For early detection of invasive species, at least one CROSSTRAP® trap baited with bait should be installed in areas at high risk of entry of exotic saproxylic and bark beetle species, such as border inspection points, customs warehouses, ports or airports with movement of goods.
For early detection, we recommend using the CROSSTRAP® DETECTION KIT attractant and opting for wet captures, as this will allow for accurate identification of the specimens. We recommend collecting the captures at least every two weeks.
The traps can be installed in open spaces inside the facilities, suspended on artificial or natural supports. It is also advisable to install between 1 and 10 traps in the forest areas closest to the points studied in order to increase detection efficiency.
The trap can be operational for up to 7 years, due to its construction and high-resistance components.
CROSSTRAP® MINI WITH WET COLLECTION CUP (with slider)

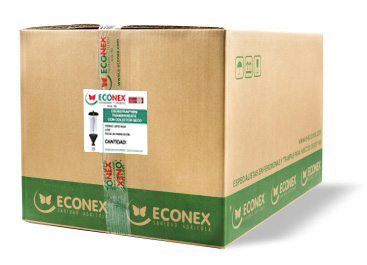

Corrugated cardboard box with 16 units.
Box dimensions: 0.60 x 0.80 x 0.48 m (width x length x height).
Box weight: 19 kg.
Number of boxes per pallet: 16
Pallet dimensions: 0.80 x 1.20 x 2.05 m (width x length x height).
Pallet weight: 162 kg

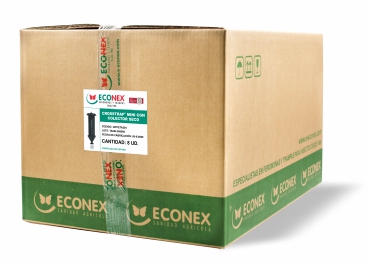

Box containing 16 units.
CROSSTRAP® DRY COLLECTION CUP (with slider)
Corrugated cardboard box containing 16 units.
Medidas de la caja: 0,60 x 0,80 x 0,48 m (width x length x height).
Peso de la caja: 19 kg.
Número de cajas por palet: 16
Medidas del palet: 0,80 x 1,20 x 2,05 m (width x length x height).
Peso del palet: 162 kg.
Caja con 16 unidades.
CROSSTRAP® MINI TRANSPARENT WITH WET COLLECTION CUP
Corrugated cardboard box containing 16 units.
Box dimensions: 0.60 x 0.80 x 0.48 m (width x length x height).
Box weight: 19 kg.
Number of boxes per pallet: 16
Pallet dimensions: 0.80 x 1.20 x 2.05 m (width x length x height).
Pallet weight: 162 kg.
Box containing 16 units.
CROSSTRAP® MINI TRANSPARENT WITH DRY COLLECTION CUP
Corrugated cardboard box containing 16 units.
Box dimensions: 0.60 x 0.80 x 0.48 m (width x length x height).
Box weight: 19 kg.
Number of boxes per pallet: 16
Pallet dimensions: 0.80 x 1.20 x 2.05 m (width x length x height).
Pallet weight: 162 kg.
Box containing 16 units.
CROSSTRAP® WITH WET COLLECTION CUP (with slider)
Corrugated cardboard box containing 8 units.
Box dimensions: 0.60 x 0.80 x 0.48 m (width x length x height).
Box weight: 13.20 kg.
Number of boxes per pallet: 8
Pallet dimensions: 0.80 x 1.20 x 2.05 m (width x length x height).
Pallet weight: 116 kg.
Caja con 8 units.
CROSSTRAP® WITH DRY COLLECTION CUP (with slider)
Corrugated cardboard box containing 8 units.
Box dimensions: 0,60 x 0,80 x 0,48 m (width x length x height).
Box weight: 13,20 kg.
Number of boxes per pallet: 8
Pallet dimensions: 0,80 x 1,20 x 2,05 m (width x length x height).
Pallet weight: 116 kg.
Box with 8 units.
CROSSTRAP FUNNEL ASSEMBLY DIAGRAM
Assembly diagram in PDF format that can be downloaded by clicking on the image.
